Industry’s First Accredited Independent Lifting System

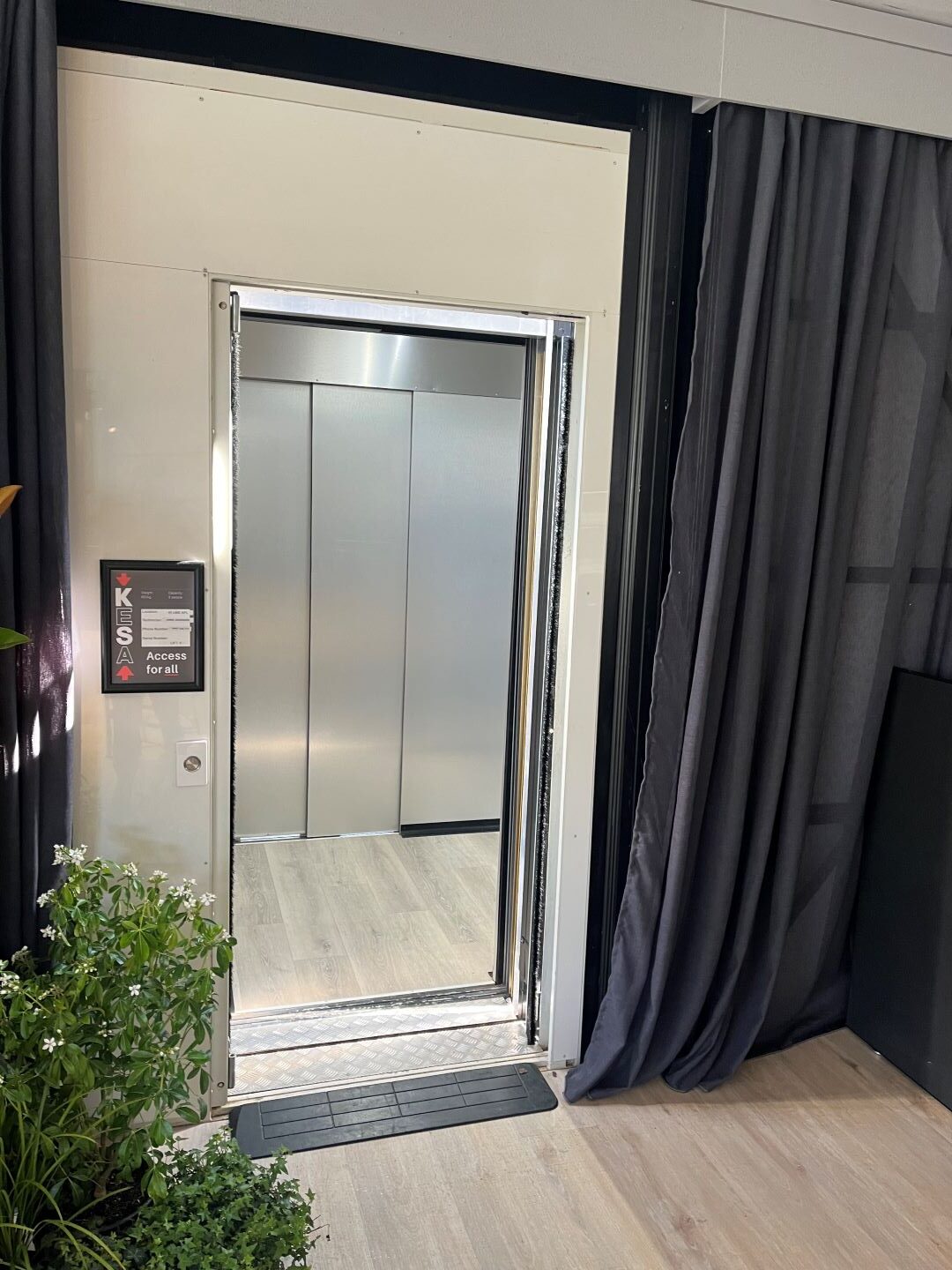

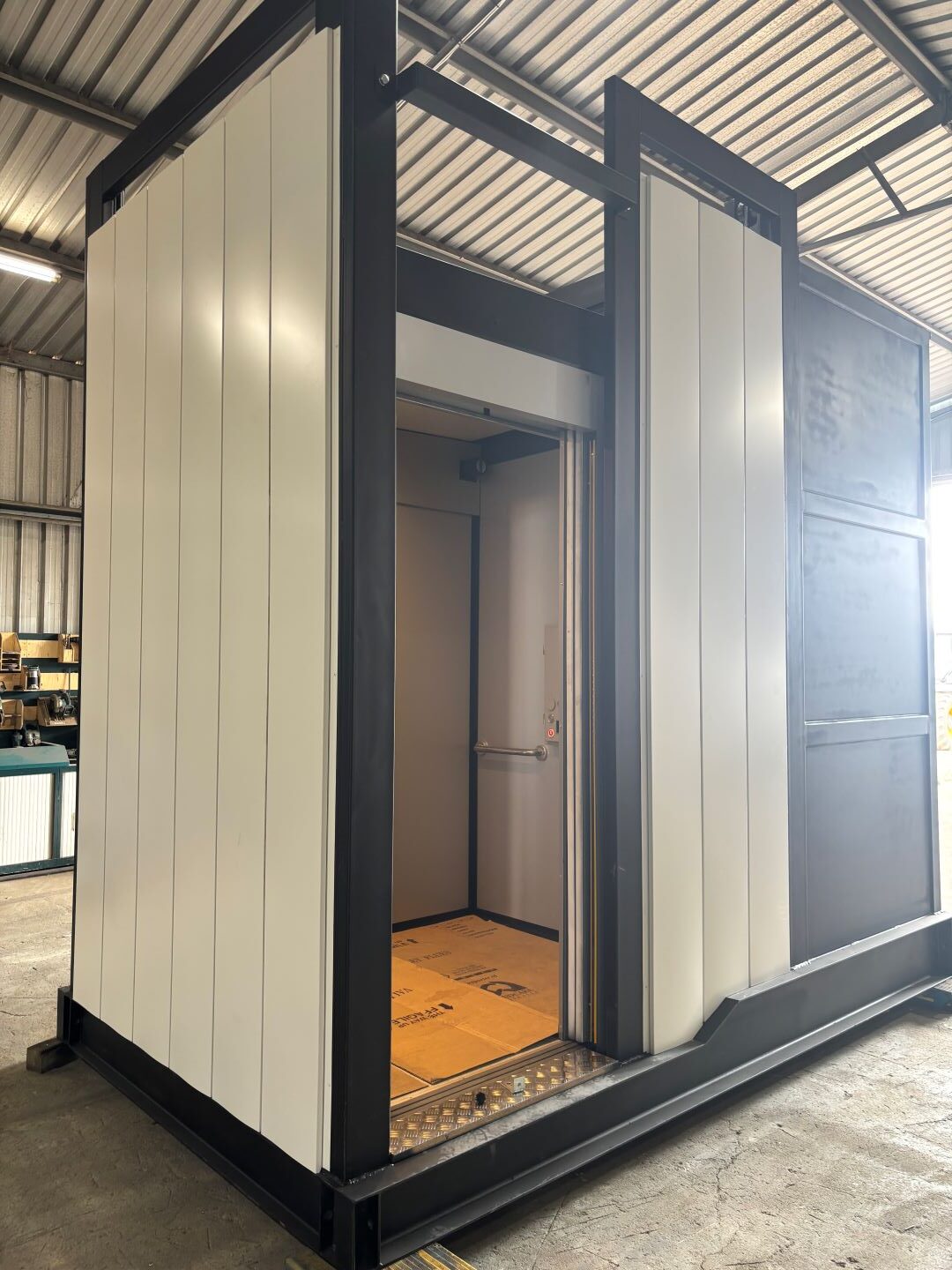

The KESA Patron Hoist is a portable, fully enclosed lifting solution designed to safely transport passengers—including individuals with disabilities—and goods across multiple levels in temporary multi-story structures.

Key Specifications

Independent & Portable

The KESA hoist is a self-structuring system, not connected to the host structure. It can be installed internally or externally, offering flexible access across up to three levels.

Spacious & Accessible Design

  • Internal carriage dimensions: 2000mm x 1800mm
  • Door width: 940mm
  • Equipped with tactile and Braille controls, compliant grab rails, and a P3-rated slip-resistant floor for safe and inclusive use.

Safety First

  • Panic-rated locking mechanisms and fall protection
  • Light curtain for passenger safety
  • Laser height readers for precise level regulation

Smart & Efficient Operation

  • Powered via 15amp inlet to inverter and battery system
  • Wifi-enabled for remote control and troubleshooting
  • Data tracking for lift usage and performance insights
  • Quick installation with full commissioning and training


DDA Compliant | Engineered for Safety | Built for Versatility

Technical Specifications

  • Vertical Travel: Up to 3 levels
  • Carriage Rating: 800kg (up to 6 persons)
  • Tare Weight: 950kg
  • Lighting: 12V internal lighting at 300 lux
  • Ground Requirements: Ideally level; can be elevated up to 500mm
  • Control System: Standard lift controls with call buttons at landings and floor buttons in carriage
  • Doors: One carriage door + one landing door per level, operating in tandem

Applications

  • Temporary structures in construction, events, or emergency response

  • Ideal for catering, waste management, and disability access
  • Reduces manual handling and improves site safety

Included with Installation

  • Full commissioning
  • Operational procedure briefing for site managers
  • Optional carriage branding
  • OnSite Technical Support during the Event
